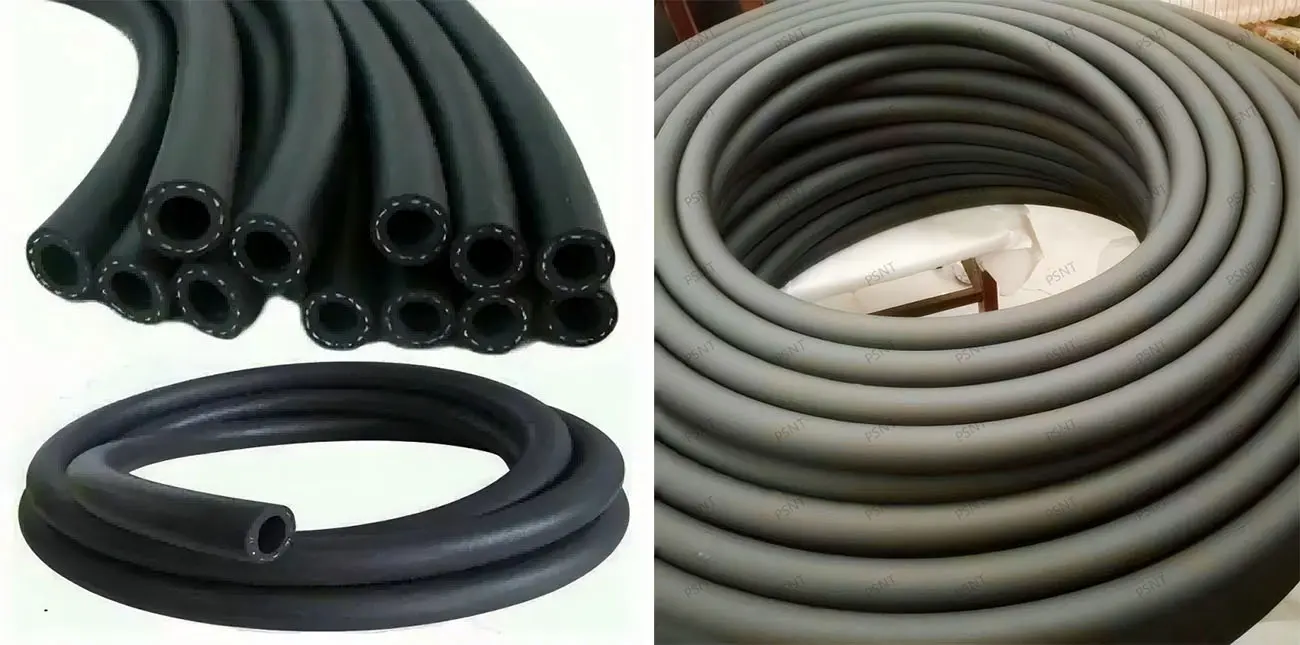

Braided Reinforced Hose | PASS | Lightweight High-Pressure Lines

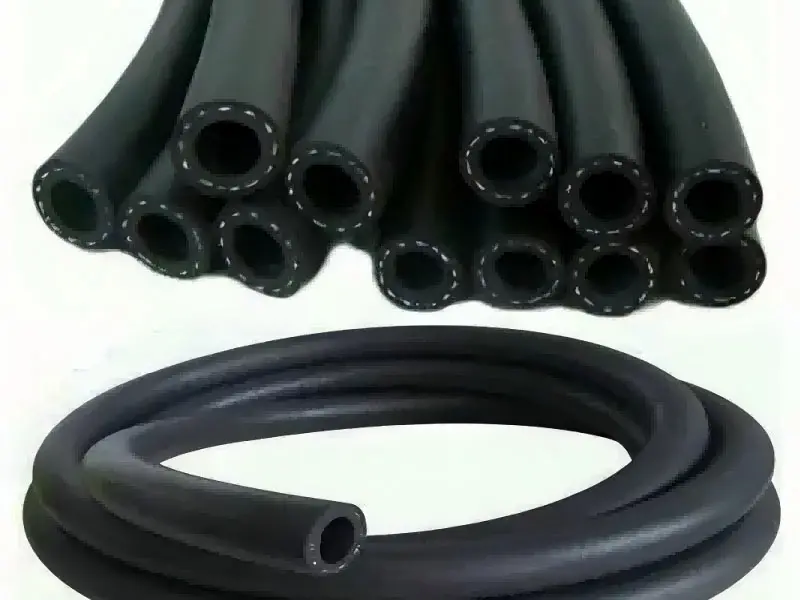

A PASS reinforced hose is a masterclass in polymer and textile engineering:

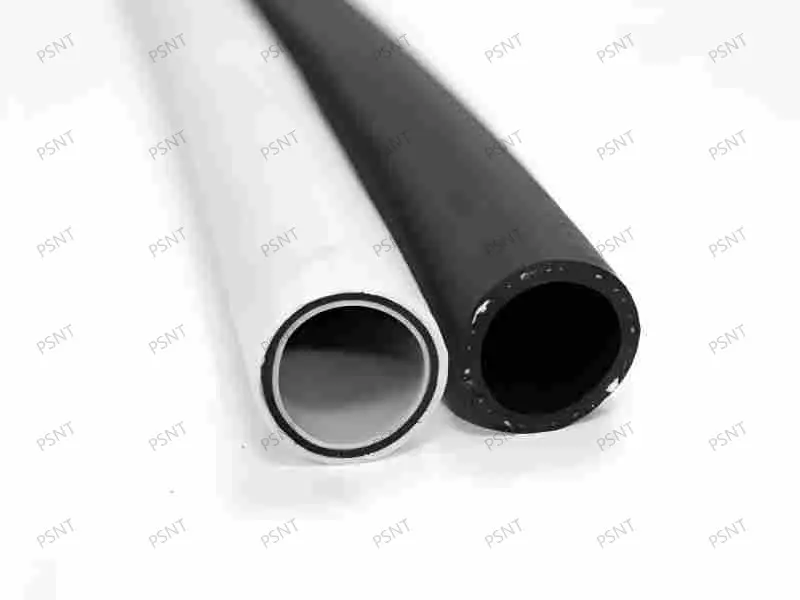

Inner Tube: A seamless, extruded tube made from fluid-specific materials (e.g., Nylon, TPV, EPDM) ensuring smooth flow and excellent chemical resistance.

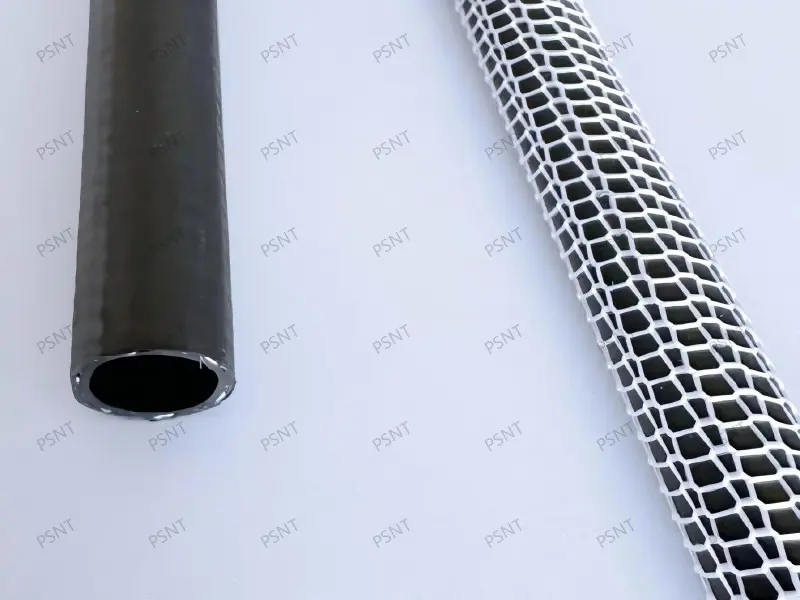

Reinforcement Layer: The core of our strength. A precise, braided sleeve of high-tensile Nylon or Polyester yarn. This layer provides outstanding burst pressure resistance while maintaining excellent flexibility.

Protective Outer Cover (Optional): An optional abrasion-resistant cover (e.g., TPV, EPDM) can be applied to protect the braid from external damage, moisture, and underhood abrasion.

This construction is ideal for a vast range of medium to high-pressure applications.

● High Burst Pressure Resistance: The high-tensile textile braid provides excellent strength, offering significantly higher burst pressure ratings compared to unreinforced hose, making it perfect for fuel, steering, and hydraulic systems.

● Lightweight & Flexible: Nylon and polyester braids offer a superior strength-to-weight ratio compared to metal, reducing overall vehicle weight and allowing for easier, more flexible routing in tight engine compartments.

● Minimal Expansion: The braid effectively restricts tube expansion under pressure, ensuring consistent fluid delivery and maintaining system efficiency (e.g., providing a firm steering feel).

● Superior Pulse Fatigue Resistance: Excellent resilience against the constant pressure cycling and vibrations found in power steering and fuel injection systems, ensuring long service life.

● Cost-Effective Performance: Provides an optimal balance of performance, durability, and cost, offering tremendous value without compromising on critical specifications.

● Corrosion Resistance: Unlike metal braids, our textile reinforcements are inherently immune to rust and corrosion, ensuring long-term reliability.

● Construction: 2 or 3-Layer: Inner Tube + Textile Braid (+ Optional Outer Cover)

● Inner Tube Materials: Nylon 11/12, Nylon 6/66, TPV, EPDM

● Reinforcement Materials: High-Tensile Nylon Yarn, High-Tensile Polyester Yarn

● Temperature Range: -40°C to +135°C (depending on material combination)

● Pressure Rating: Custom engineered to meet specific system demands, typically suitable for pressures up to 200 bar (2900 PSI) and beyond, depending on design.

● Standards: Compliant with IATF 16949, ISO 9001, and meets relevant SAE (e.g., J188) and OEM performance standards.

PASS braided hoses are expertly specified for a wide range of applications:

Fuel Systems: Ideal for high-pressure fuel lines in direct injection (GDI) systems, pump-to-rail connections, and return lines.

Power Steering Systems: Excellent for medium and high-pressure supply and return lines where pressure pulsation and flexibility are key.

Braking & Hydraulic Clutch Systems: As durable protective sleeves and for hydraulic fluid transfer.

Transmission Oil Cooling Lines: For efficient and durable hot oil transfer.

Engine Lubrication Systems: For oil breather and auxiliary oil lines.

Air Conditioning Systems: As reinforced refrigerant lines.

PASS has mastered the art and science of textile braid reinforcement. Our precision braiding process ensures optimal weave density and tension control, resulting in consistent, high-performance hoses every time. We focus on the materials that offer the best performance for a wide range of applications, providing our clients with reliable, lightweight, and cost-optimized solutions. Our engineering team will work with you to select the perfect combination of polymer and braid to meet your specific pressure, fluid, and environmental requirements.

Contact PASS today to discuss your application. Let us provide a reinforced hose solution that delivers strength, reliability, and value.
