Product Overview

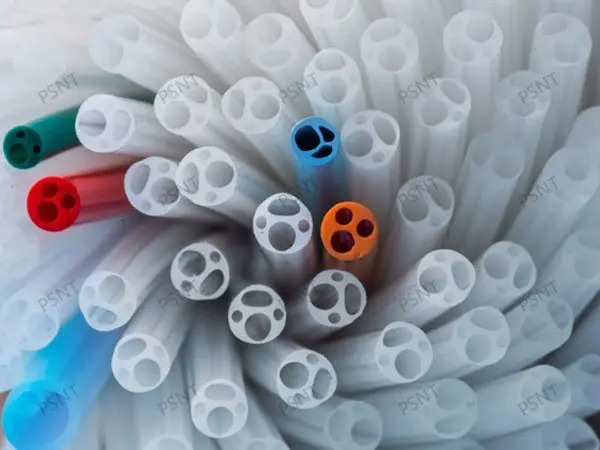

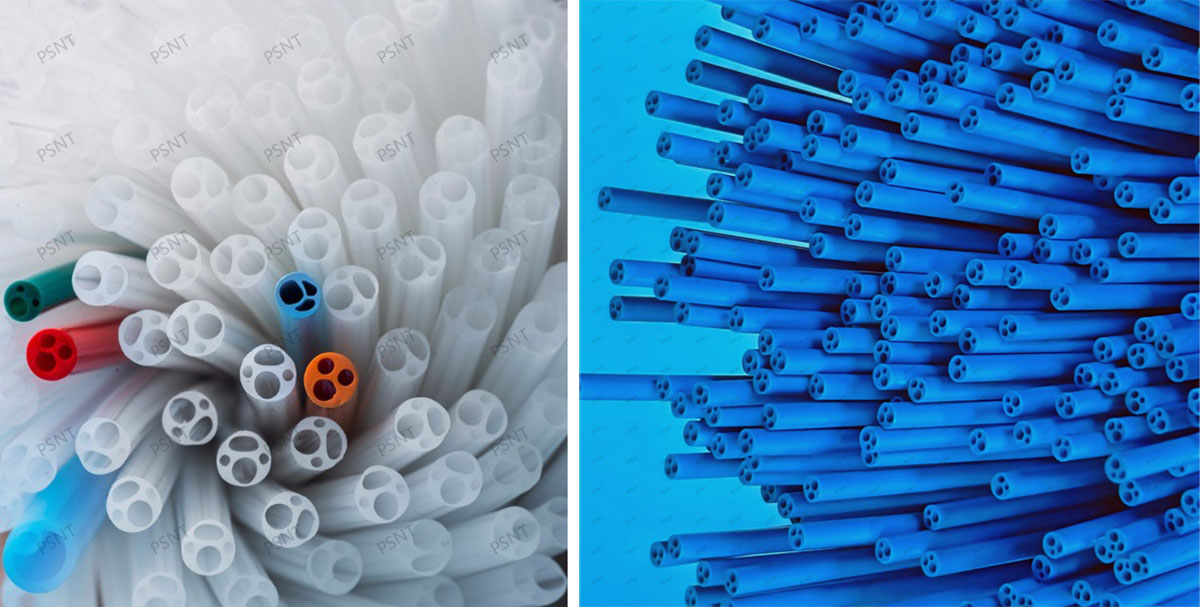

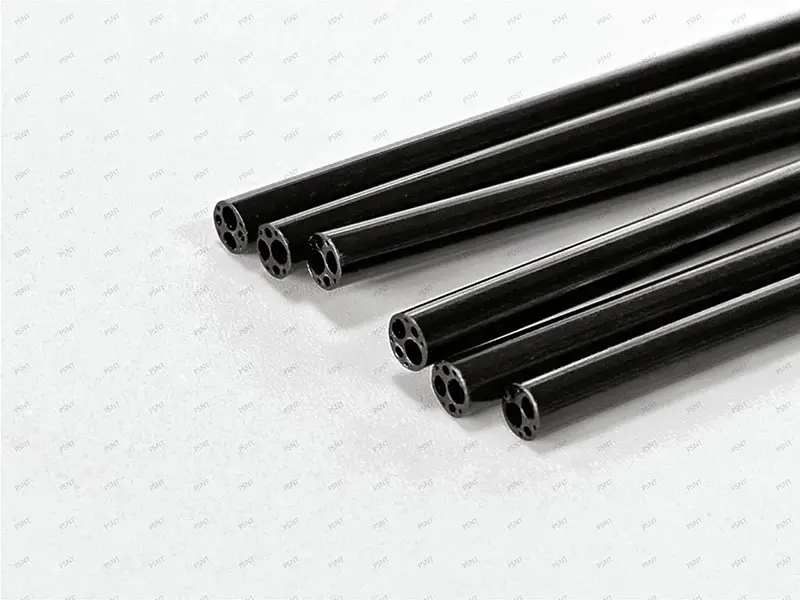

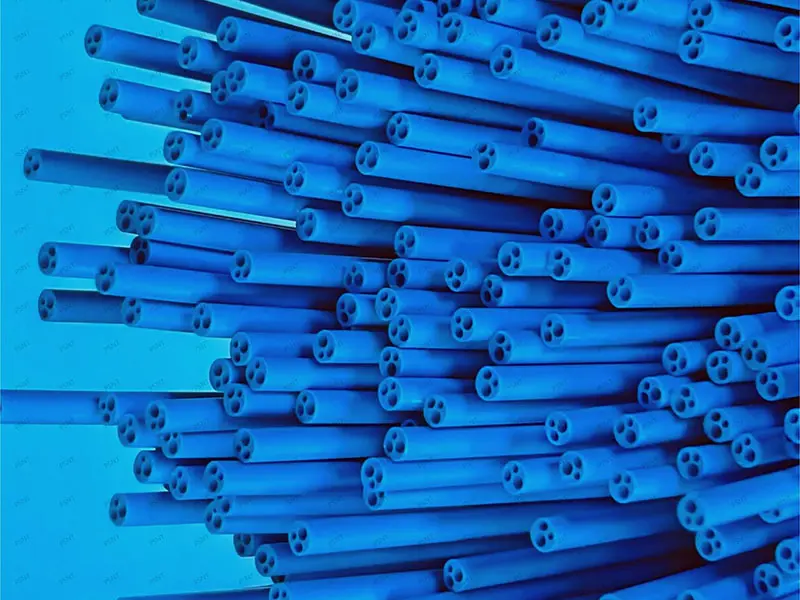

PASS multi-lumen tubes are precision-extruded to create two or more independent flow channels within a single, cohesive profile. We specialize in:
Multi-Lumen Tubes: Feature parallel lumens of the same or different diameters for simultaneous transfer of multiple fluids.
Stepped Tubes (Dual-Durometer): Combine lumens of varying sizes and can integrate different materials (e.g., a rigid section for stability paired with a flexible section for connectivity).

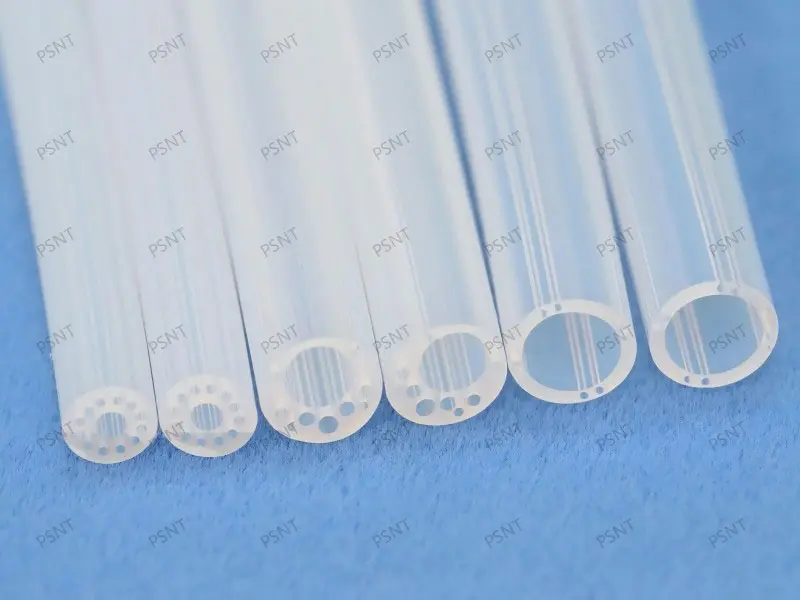

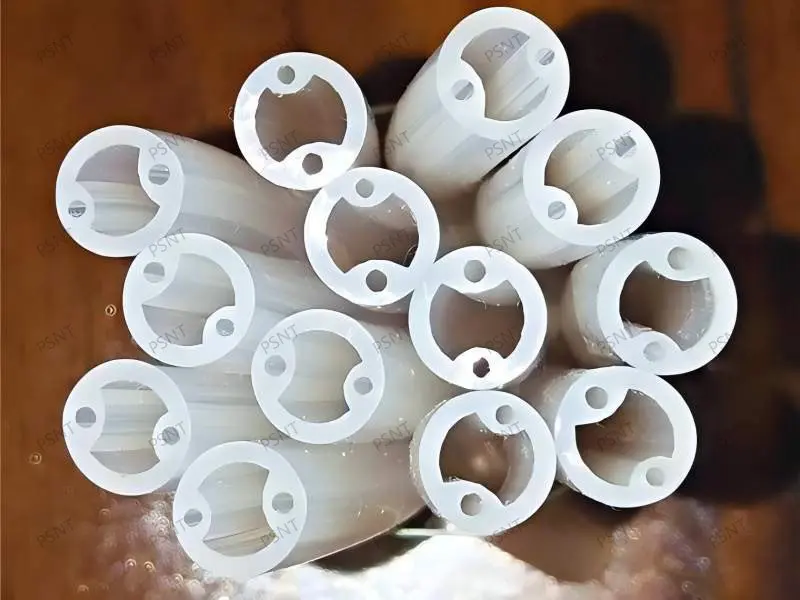

Silicone Multi-Lumen Tubes: Utilize high-temperature silicone rubber for extreme thermal environments, offering superior flexibility and longevity.
This advanced co-extrusion technology allows for custom geometry, material combinations, and performance characteristics tailored to your specific system requirements.
Key Features & Benefits
● Space and Weight Optimization: Replaces multiple single tubes with one integrated component, saving crucial space and reducing overall weight for improved vehicle efficiency.
● Simplified Assembly & Routing: One tube installs faster and easier than multiple individual lines, reducing labor costs and complexity in assembly plants.
● Enhanced System Reliability: Minimizes the number of connections and clamps, thereby reducing potential leak points and improving overall system integrity.
● Material Versatility: Each lumen can be engineered with materials best suited to its function (e.g., Nylon for oil resistance in one channel, TPV for coolant in another). Our silicone multi-lumen tubes excel in continuous high-temperature applications.
● Cross-Contamination Prevention: Provides a secure, leak-proof barrier between different fluids (e.g., coolant and refrigerant) running in adjacent channels.
● Design Flexibility: PASS offers unparalleled customization in lumen diameter, wall thickness, geometry (round, oval, D-shaped), and material selection.
Technical Specifications
● Type: Multi-Lumen, Stepped/Dual-Durometer, Silicone Multi-Lumen
● Materials: Custom combinations of Nylon (PA), Polypropylene (PP), TPV, Silicone (VMQ), FKM, XLPE.
● Number of Lumens: 2, 3, or more custom configurations.
● Lumen Diameter: From 2mm to 20mm, with independent sizing within a single tube.
● Key Material Properties (Silicone): Excellent thermal stability (-60°C to +200°C), superior flexibility, high dielectric strength, and resistance to oxidation.
● Standards: Compliant with IATF 16949, ISO 9001, and material specifications from global OEMs. All materials meet RoHS and REACH compliance.
Primary Automotive Applications
PASS multi-lumen tubing is ideal for complex systems where space and integration are critical:
● HVAC Systems: Integrated lines for refrigerant, condensate drainage, and sensor lines within a single unit.
● Automatic Transmission & Powertrain: Combined delivery of transmission fluid, coolant, and hydraulic control fluids.
● Thermal Management Systems: For next-gen EVs and Hybrids, managing battery coolant, refrigerant, and PTC heater lines in close proximity.
● Engine Management: Bundled lines for vacuum, crankcase ventilation, and sensor feeds.
● Fuel Systems: Combined vapor recovery and supply lines.
● Hydraulic Control Units (HCU): Integrated delivery for different hydraulic fluids.
Why Choose PASS for Multi-Lumen Solutions?
The design and extrusion of multi-lumen tubing require advanced expertise and process control. PASS leverages its deep material science knowledge and precision manufacturing capabilities to deliver complex tubing solutions that perform flawlessly. Our engineering team works directly with your designers from the concept phase to optimize the profile for function, manufacturability, and cost-effectiveness. We are committed to pushing the boundaries of extrusion technology to provide our clients with a competitive advantage.
Contact PASS today to consult with our engineering team about your multi-lumen application. Request prototypes and see how our integrated solutions can enhance your vehicle design.
